MACHINE DESCRIPTION

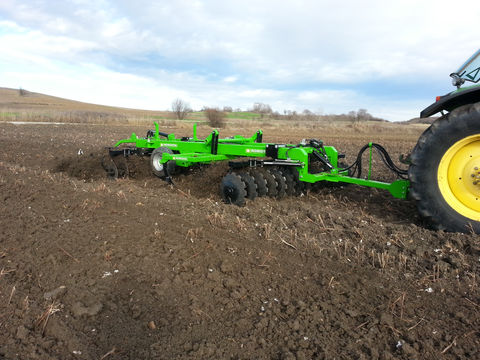

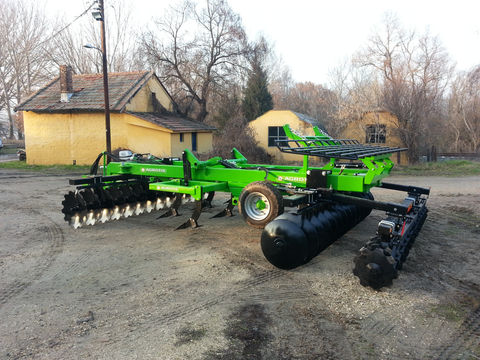

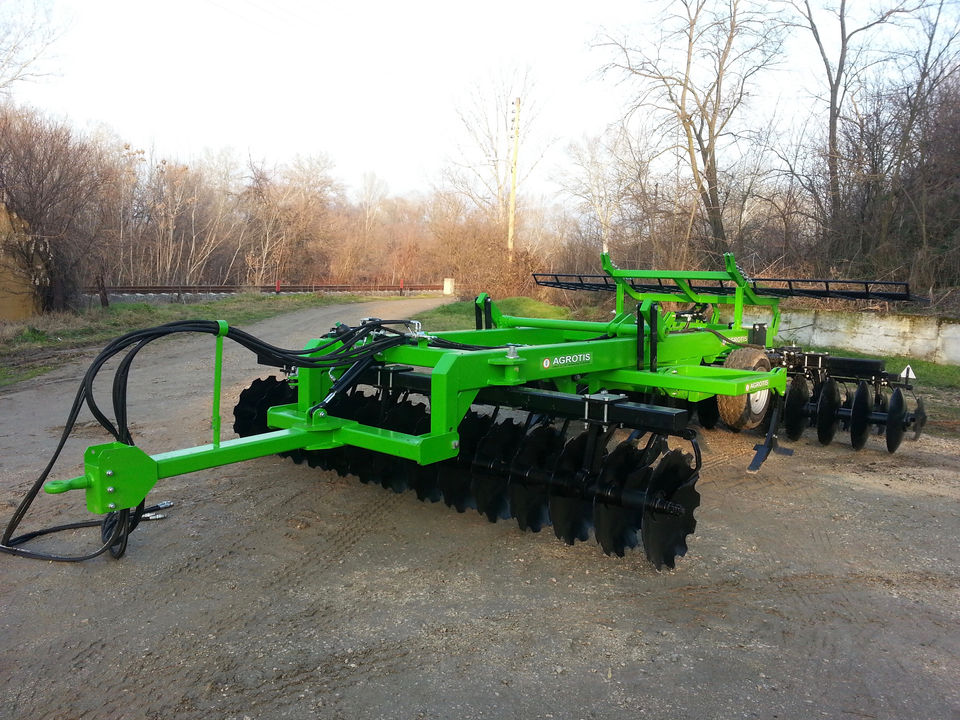

Our long-standing experience in disc harrow applications has led us to the construction of a complex disc harrow machine with a reaper, thus achieving deep plowing and uniform smoothing out of the field at the same time, and ensuring great savings in fuel and time!


The perfect collaboration of a reaper with discs with the hydraulic frame behind leads to an immaculate plowing of the field, ready for sowing!


  • Reinforced hollow beam chassis.


  • Triple set of discs with hydraulic adjustment.


  • Reaper with adjustable working depth.


  • Metal bearings with seals and double ball bearings.


  • Hydraulic lifting of wheels with a duplex cylinder.


  • Hydraulic nitrogen tow-bar.


  • Hydraulic disc displacement.






SPECIFICATIONS

Disc Harrows with Reaper





Type . LR28



Type . LR28-56



Disc Numbers . 28



Disc Diameter . 56



Disc Distances . 22



Working Width . 2.90m



Weight ( kg ) . 3.400



HP Tractor . 160-200



Type . R28-66



Disc Numbers . 28



Disc Diameter . 66



Disc Distances . 24



Working Width . 3.20m



Weight ( kg ) . 3.900



HP Tractor . 200-260






Type . R32



Τύπος . R32-56



Disc Numbers . 32



Disc Diameter . 56



Disc Distances . 22



Working Width . 3.30m



Weight ( kg ) . 3.600



HP Tractor . 180-200




Type . R32-66



Disc Numbers . 32



Disc Diameter . 66



Disc Distances . 22



Working Width . 3.60m



Weight ( kg ) . 4.150



HP Tractor . 220-300
